Weichai WP13 Marine Diesel Engine 405kW 1800rpm Boat Propulsion Engine

Weichai WP13 Marine Diesel Engine 405kW 1800rpm Boat Propulsion Engine

Weichai WP13 marine diesel engine

405kW boat propulsion engine

1800rpm marine diesel engine

Plaats van herkomst:

Hebei, China

Merknaam:

Weichai

Certificering:

CE/EPA/ISO

Modelnummer:

WP13

Neem contact met ons op

Vraag een offerte
Productdetails
Productnaam:
Weichai-motor WP13 Marine
Sleutelwoorden:
Motor WP13
Sollicitatie:
Vrachtwagen
Pakketgrootte:
1300mm*1100mm*1300mm
Gewicht:
1000KG
Stroom:
550 pk
Uitstoot:
Euro 3
Boring ((mm) x Stroke ((mm)):
108x130
Betaling & het Verschepen Termijnen
Min. bestelaantal
1 eenheid
Verpakking Details
Houten kist
Levertijd
7-10 dagen
Betalingscondities
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Levering vermogen
1000 eenheid per maand
Productbeschrijving

Products Description

WP13 marine diesel engine is Weichai’s flagship high-power marine power unit, specially optimized for long-time continuous marine navigation working conditions. It integrates mature heavy-duty vehicle power technology with marine-specific corrosion-proof, waterproof and anti-vibration upgrading, balancing strong power, low operation cost and long service life.

The whole series supports mechanical pump and electronic common rail two fuel systems. The electronic control version adopts 2200bar high-pressure common rail injection, precise multi-stage injection control, greatly reducing vibration, noise and exhaust smoke; mid-low speed large torque output ensures fast acceleration and stable climbing performance under full load. All models pass strict marine reliability test, support 1-hour 110% overload operation, ideal for heavy-duty marine propulsion.

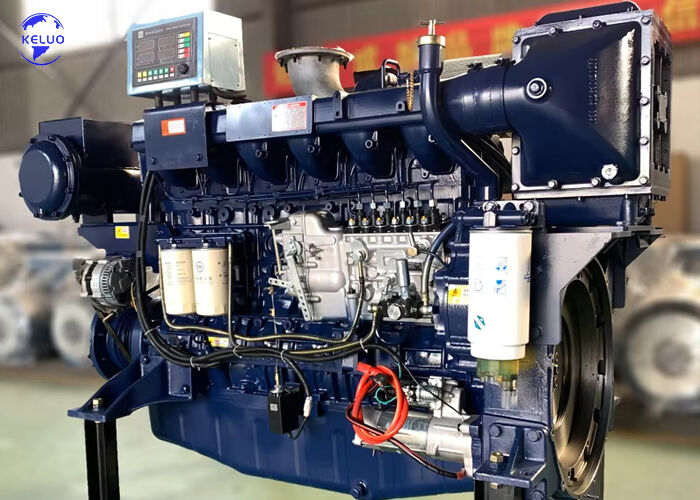

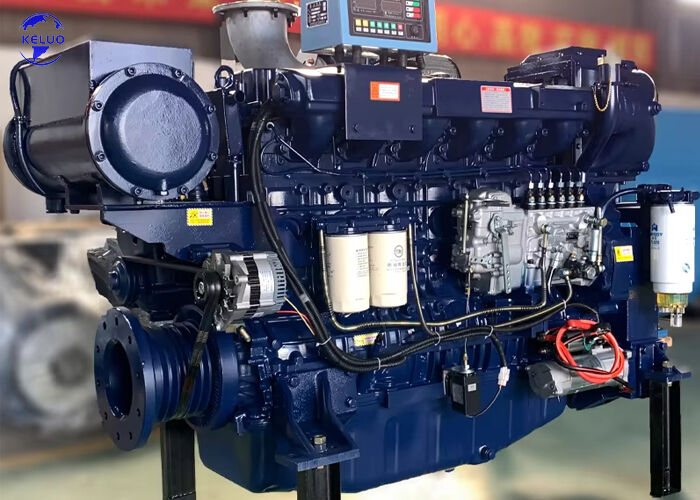

Weichai WP13 Marine Diesel Engine 405kW 1800rpm Boat Propulsion Engine 0Weichai WP13 Marine Diesel Engine 405kW 1800rpm Boat Propulsion Engine 1

Core Competitive Advantages

Powerful & Stable Performance
25%-35% torque reserve, sufficient power reserve for full-load sailing, stable power output under variable load such as fishing net lifting, headwind navigation; maximum overload 110% rated power for emergency demand.
Ultra-Low Fuel & Oil Consumption
Optimal combustion chamber matching, minimum fuel consumption as low as 191g/kW·h, lubricating oil consumption controlled below 0.5g/kW·h, effectively cutting long-term ship operation cost.
Marine Anti-Corrosion Upgrade
5-layer special anti-salt fog metal coating, all pipelines use marine-grade anti-corrosion rubber hose; duplex fuel filter with built-in water separator avoids seawater mixed fuel damage; dedicated marine heat exchanger and water-jacketed exhaust pipe reduce cabin temperature and corrosion.
Environmentally Friendly & Certified
Meets global IMO Tier II marine emission regulation, obtains CCS China Classification Society, BV Bureau Veritas, IRS marine certification, can be legally used for ocean and inland river vessels worldwide.
Low Vibration & Low Noise
Pre & post multi-stage fuel injection technology cuts engine noise ≤100dB(A); matched marine vibration isolation pads optional, greatly improve cabin comfort for passenger ships and yachts.
Complete Customized Matching
Support multiple duty power ratings (P1 continuous duty / P2 heavy duty / P3 intermittent duty); optional LCD intelligent marine instrument, remote monitoring system, electric starter, marine silencer, flexible configuration for different ship types.

Item Parameter
Cylinder Arrangement Inline 6 Cylinders, Four-Stroke, Water Cooling
Aspiration Turbocharged & Intercooled
Bore × Stroke 127 mm × 165 mm
Total Displacement 12.54 L
Compression Ratio 16:1
Rated Rotational Speed 1800 rpm
Power Range 330kW~405kW (450HP~550HP)
Idle Speed 650±25 rpm
Firing Order 1-5-3-6-2-4
Flywheel Standard SAE 1/14"
Dry Weight (Bobtail) 1200 KG
Rotation Direction (Facing Flywheel) Counter-clockwise
Emission Standard IMO Tier II

Weichai WP13 Marine Diesel Engine 405kW 1800rpm Boat Propulsion Engine 2
